K-FACE11 Face Recognition Attendance Terminal
Explore the K-FACE11 face-recognition, attendance and access-control features.
K-FACE11Face Recognition Terminal
The K-FACE11 supports face, card and password verification, with a touchscreen and access-control functions.
Face verification for workplace access.

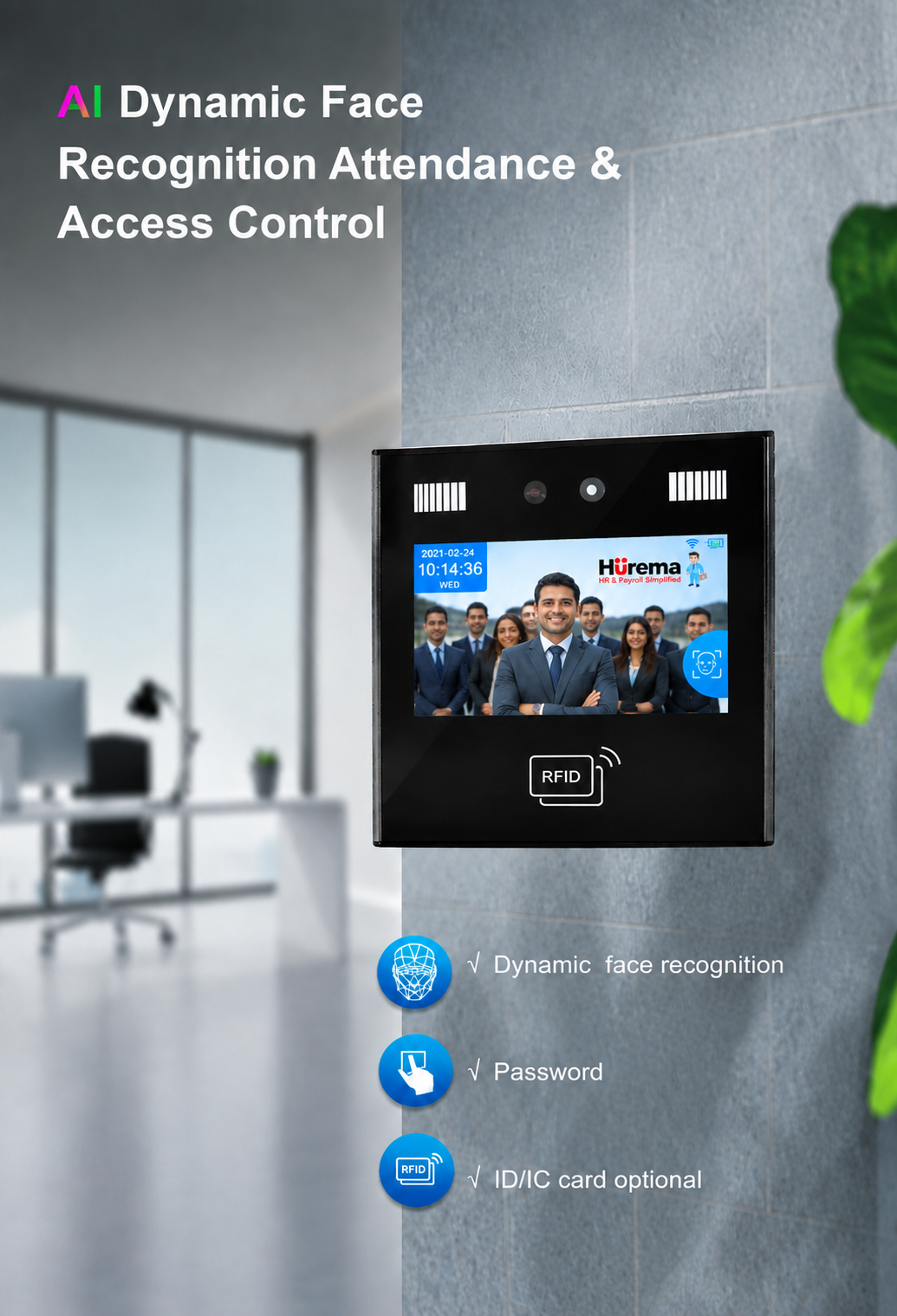

KFACE11 is a face-recognition terminal for employee attendance and controlled workplace entry.
It supports dynamic face recognition, password and ID/IC card verification for use in offices, schools, retail and other commercial settings.
Dual-camera anti-counterfeiting technology is designed to help identify photo and video attempts. Network, USB and Wi-Fi connections provide options for device communication.
Access and attendance
Combine biometric verification with attendance and door-control functions.
Device features at a glance
ID/IC card capacity
Optional card verification
Recognition distance
Face detection across a 0.5–2.5 m range
Face capacity
Stored face templates
Recognition speed
Face verification in up to 0.2 seconds
2MP colour camera
Camera with wide dynamic range
Screen display
Touch display for device use
Touchscreen
Operate the terminal using its touchscreen
Language support
Supports 20 languages
Door control
Lock output and doorbell connection
Infrared camera
Infrared image capture
Screen resolution
272 × 480 display resolution
Recognition accuracy
Face recognition accuracy
Product Specifications
| Specification | Technical Details |
|---|---|
| Hardware | |
| Screen | 4.3 Inch Touch Screen |
| Keypad | Touch keypad |
| Operation system | LINUX 3.0 |
| CPU | 800M single-core ARM Cortex-A7 |
| NPU | 800G (0.8T) Hashrate |
| RAM, ROM | 256M DDR3L, 4G EMMC |
| Camera | 2MP color camera + 2MP infrared camera |
| Logs capacity | 5000000 |
| Face & Verification | |
| Verification | Face recognition, password, ID card (IC card optional) |
| Face capacity | 5000 |
| Card Capacity | 5000 |
| Password Capacity | 5000 |
| Face Recognition Accuracy | 99.70% |
| Recognition Speed | ≤0.2s |
| Recognition Distance | 0.5–2.5 meters (0.5 meters with live face recognition only) |
| Principle of Identification | Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition |
| Live detection | Dynamic dual-camera anti-counterfeiting, to prevent all kinds of black-and-white, color photos and videos from detection |
| Camera & Connectivity | |
| WDR | Wide dynamic range, support accurate face recognition under strong light, high light and backlight |
| USB | USB2.0×1, support U disk import/export data |
| Power supply | DC12V 1A |
| Built-in Battery (optional) | 7.4V, 2000mA |
| Network Communication | TCP/IP, USB, WiFi |
| Software & Attendance | |
| Free Attendance software | Local software and web based cloud software |
| Access Control Function | |
| Access Control Interface | Lock output; Doorbell output/external ring; Wiegand input/output |
| Environmental Adaptability | |
| Environmental adaptability | Working temperature: 0–45°C; Working humidity: 20–80% |
| Other Features | |
| Mask Detection | Support mask detection and face recognition with mask on |
| Multi language | Support 20 national languages and voices including English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc. |
