K-AI06 Biometric Terminal for Attendance
Explore the K-AI06 biometric attendance and access-control features for your workplace.

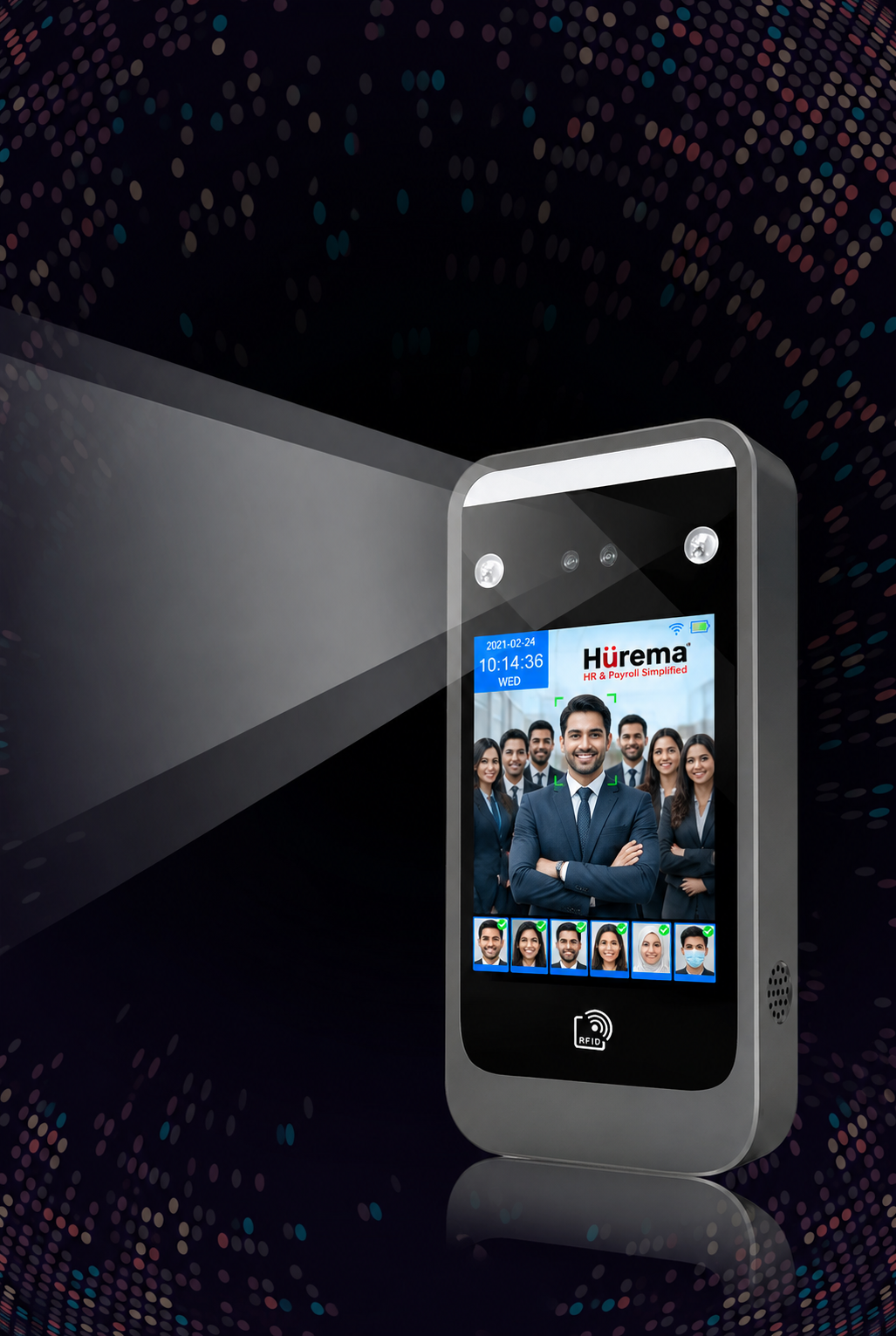

KAI06 Biometric Attendance Terminal
Face verification, attendance recording and access-control functions in one device.
Built for workplace verification.
The K-AI06 face-recognition terminal combines employee attendance functions with controlled access features.
Dynamic face recognition supports identification, alongside password and ID/IC card verification options and access-control functions.
Network communication, attendance reporting, shift management and PC management software support its use in workplaces with controlled entry.
Face recognition
Face-recognition technology supports identity checks at the terminal.
Device functions and options
User recognition
Single / Multi user recognition
Recognition distance
Recognition distance
Face template capacity
50000 optional
Recognition response
Fast identification
Colour camera
200W WDR camera
Touch display
HD capacitive touch screen
Touchscreen operation
Easy device operation
Language support
Multi-language support
Door control
Door access control
Infrared imaging
Infrared live camera
Display
High-definition display
Recognition accuracy
Face recognition accuracy
Product Specifications
| Specification | Technical Details |
|---|---|
| Specifications | |
| Product Name | AI Dynamic Face Recognition Time Attendance Access Control Terminal |
| Screen | 4.3 Inch, HD 272×480, Capacitive Touch Screen |
| Keypad | Touch keypad |
| Operation System | LINUX 3.10 |
| CPU, NPU | 1.2G Dual-Core ARM Cortex-A7, 600G (0.6T) |
| RAM | 256MB DDR3 |
| ROM | eMMC Flash 4GB |
| Binocular Camera | 200W Colorful WDR + 200W Infrared live camera |
| Logs Capacity | 500000 |
| Face & Verification | |
| Face Registration | Local operation: Enroll face with machine, import user photo with U disk Software operation: Import user photo to software, capture user photo with camera |
| Verification | Dynamic face recognition, password, ID/IC card optional |
| Face Capacity | 5000 (50000 optional) |
| Card Capacity | 5000 (50000 optional), ID Card Standard, IC Card Optional |
| Password Capacity | 5000 (50000 optional) |
| Face Recognition Accuracy | 99.70% |
| Recognition Speed | ≤0.2s, supporting single user/multi-user (at most 5 users) recognition at the same time |
| Recognition Distance | 0.5~2.5 meters (0.5~1.5 meters with live face recognition on) |
| Prevent Photo | Dual camera anti-counterfeiting, prevent recognition with photo/video |
| Principle of Identification | Face algorithm technology of multi-task cascaded convolutional neural network based on video stream for dynamic face detection, tracking and recognition |
| Camera & Connectivity | |

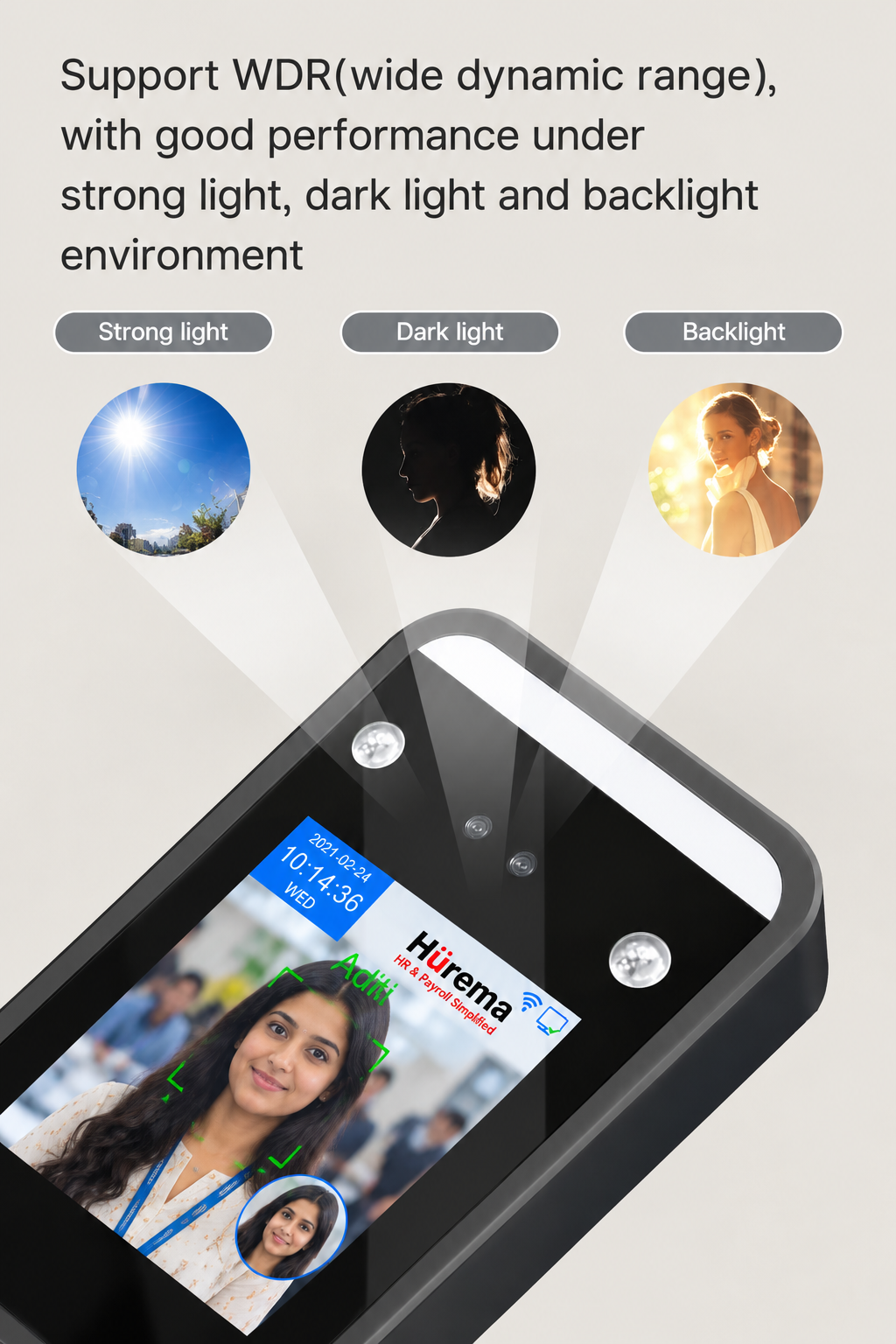

| WDR | Wide dynamic range, support accurate face recognition under strong light, dark light and backlight |
| USB | USB2.0 × 1, Support U disk import/export data |
| Power Supply | DC12V interface × 1 |
| Speaker Interface | Reserved for extended Speaker Interface |
| Network Communication | TCP/IP, Support C/S LAN communication, Wifi (optional) |
| Software & Attendance | |
| Free Attendance Software | Support exporting Excel attendance report with U disk |
| Shift | Support shift setting and importing shift schedule with U disk |
| Management Software | Support PC software to manage data through network connection with equipment |
| Access Control Function | |
| Access Control Function | Door unclosed alarm Forced door opening alarm Alarm linkage and output One set of door opening signals One set of alarm signals Time permission control Connect external access control reader Wiegand 26/34 output input |
| Environmental Adaptability | |
| Working Temperature | -15°C~+45°C |
| Storage Temperature | -40°C~+65°C |
| Working Humidity | 20%~90% |
| Storage Humidity | 20%~90±2% |
| Dark Environment | LED Soft light automatic fill light (automatic control according to ambient light) |
| Ambient Light Adaptation Range | 0–50000 Lux |
| Other Features | |
| Multi Language | English, Spanish, Arabic, Thai, Farsi, Portuguese, French, Italian, Japanese, Korean, etc. |
| Broadcast & Ring | Support display name, voice broadcast name, built-in bell ring |
| Automatic Fill Light | Support infrared fill light; white fill light automatically lights up when face is captured in dark light |
| Working Current | Stand-by current: 310mA; Working current: 520mA |
| QR Code Scanner | Support |
| Working Voltage | DC12V |
| Installation Way | Standard: Wall mount, desktop stand; Optional: bracket for turnstile, floor stand |
| Device Dimension | 187.5 × 87.5 × 26mm |
| Color Box Dimension | 257 × 171 × 90mm |
| Carton Dimension | 480 × 438 × 229mm, 12Kg/carton, 10 units/carton |
