K-AI03 Face Recognition Terminal for Attendance
Record attendance and support workplace access with a compact face-recognition terminal.

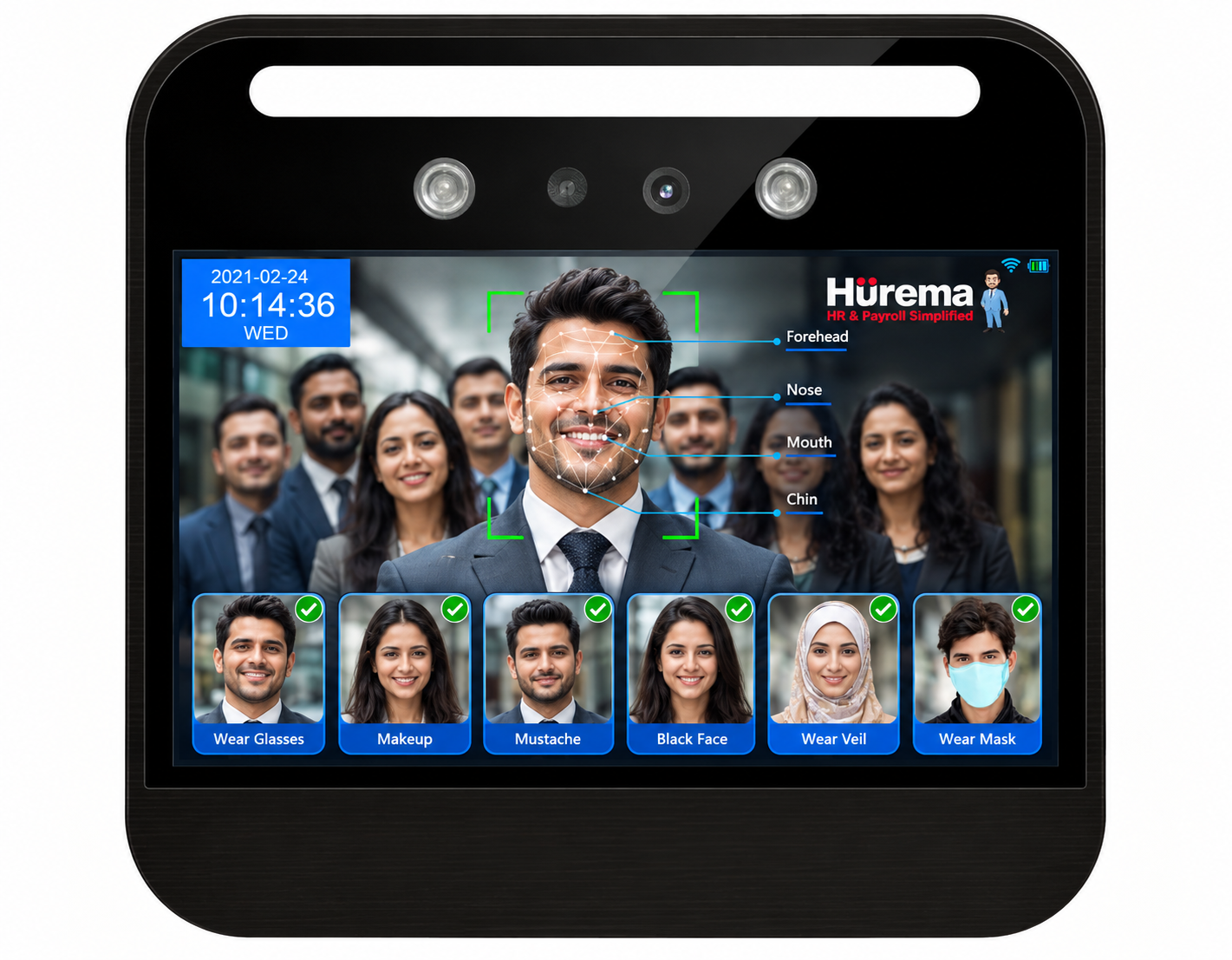

KAI03 Face Recognition Attendance Device
Face verification, attendance recording and access-control functions in a compact terminal.
Designed for workplace verification.
KAI03 combines a 1.2G dual-core ARM Cortex-A7 CPU and 600G (0.6T) NPU with a 5-inch HD IPS touchscreen at 1280 × 720 resolution.

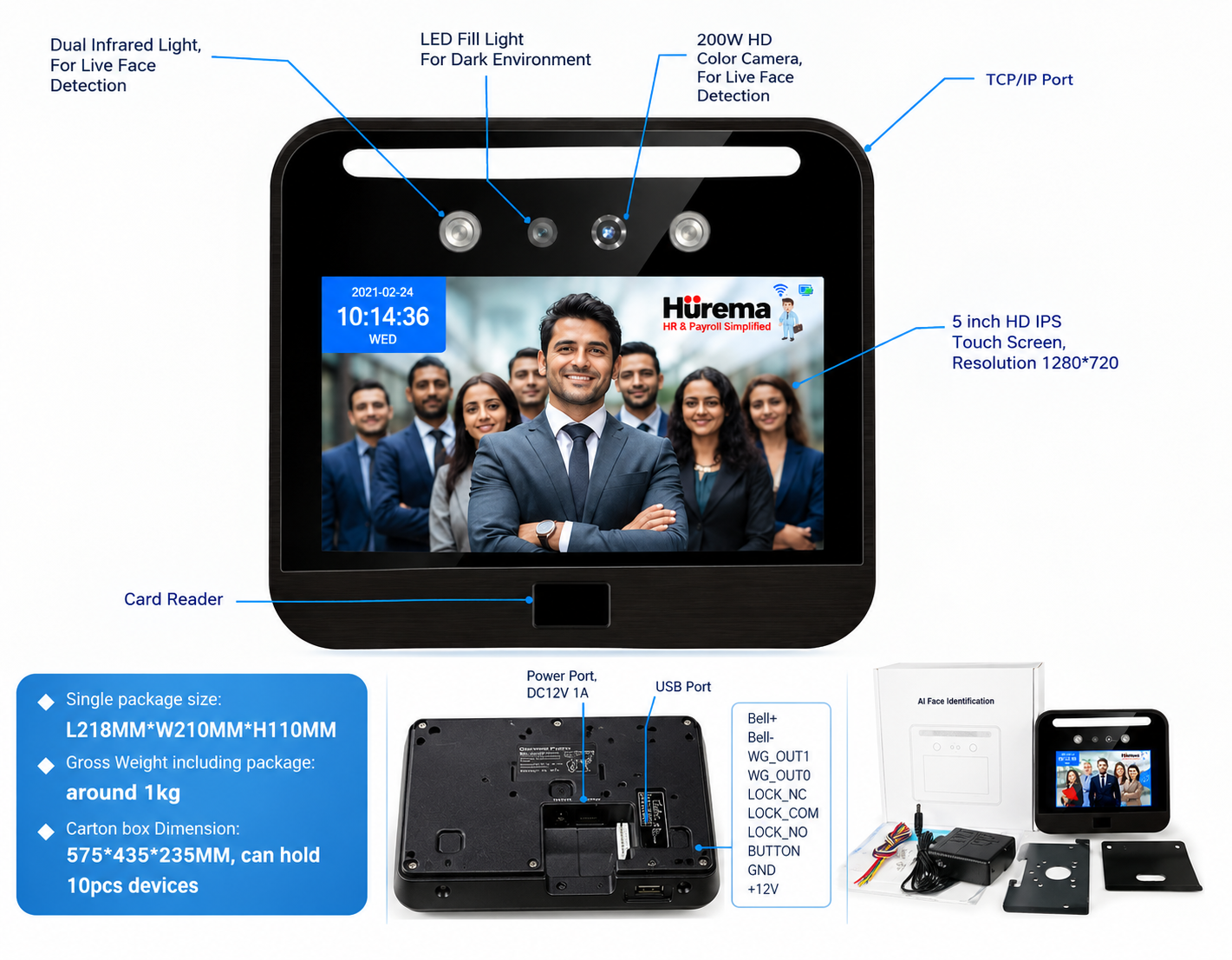

Its 200W HD colour and 200W HD infrared cameras work with LED and dual infrared fill lights in normal, bright, dark and backlit conditions.
The face, card and password capacity is 5,000, with 50,000 available as an option. The device stores up to 500,000 logs.
Verification options include face recognition, ID card with optional IC, password or a combination. Face recognition takes less than 0.2 seconds, operates at 0.5–2.5 metres and can recognise up to five people at once. Live-face detection is designed to reject photo and video attempts; mask detection and recognition are also supported.
KAI03 runs Linux and supports English, Spanish, Arabic, Thai, Russian, Portuguese, French, Farsi, Vietnamese, Japanese, Turkish and configurable language options.
KAI03 can support attendance recording and controlled entry at your organisation.
AI Powered
Face-recognition technology supports identity checks at the terminal.
Verification and device features
Multiple verification options
Face recognition, ID card with optional IC, password or a combination
Quick face recognition
Face recognition in under 0.2 seconds
Live-face detection
Detection designed to reject photo and video attempts
Recognition range
Recognition distance from 0.5 to 2.5 metres
Log storage
Stores attendance and access records
Language options
English, Spanish, Arabic, Thai, Russian, Portuguese, French, Farsi, Vietnamese, Japanese, Turkish and configurable languages
HD Cameras
Color and infrared camera technology
Display
1280×720 IPS capacitive touch screen
Control
Door access control
Infrared Camera
Infrared live camera
HD Screen
High-definition display
Face/Card/Password
50000 optional
Product Specifications
| Specification | Technical Details |
|---|---|
| Hardware | |
| Model | KAI03 |
| CPU | 1.2G Dual-Core ARM Cortex-A7 |
| NPU | 600G (0.6T) |
| RAM | 256M DDR3L |
| ROM | 4G EMMC |
| Camera | 200W HD Color Camera, 200W HD Infrared Camera, Wide Range Dynamic |
| Fill Light | LED Fill Light and Dual Infrared Fill Light |
| Display | 5 inch HD IPS Touch Screen, Resolution 1280×720 |
| Communication Port | TCP/IP, USB-Type A (Support U disk), Wifi |
| Product Size | 155mm × 133mm × 25.5mm |
| Power | DC 12V, 1A |
| Working Temperature | 0~45 °C |
| Working Environment | Under normal light, strong light, dark environment, backlight |
| Firmware Specs | |
| OS | Linux |
| Language | English, Spanish, Arabic, Thai, Russian, Portuguese, French, Farsi, Vietnamese, Japanese, Turkish, and customizable |
| Verify Method | Face Recognition, ID Card (IC optional), Password, or combination |
| QR Code Scanner | Support |
| Face/Card/Password | 5000 (50000 optional) |
| Capacity | |
| Logs Capacity | 500,000 |
| Face Recognition Speed | <0.2S |
| Face Recognition Distance | 0.5~2.5 meters (adjustable) |
| Live Face Detection | Reject Photo and Video |
| Special Features | |
| Simultaneous Recognition | At most 5 people face recognition at same time |
| Birthday Display | Happy birthday display and audio |
| Mask Detection | Mask detection and face recognition with wearing mask |
| Access Control Interface | |
| Relay Output | One set |
| Wiegand | One set WG 26/34 Output |
| Exit Button | Support |
| Door Bell | Support |
